K9 SUPERVISION: ULTIMATE SAFETY FOR K9 TEAMS !

SÉCURITÉ ULTIME POUR ÉQUIPES CANINES !

See, listen and record while remotely controlling your dog!

Contrôlez votre chien à distance, observez, écoutez et enregistrez tout !

K9 SUPERVISION system facilitates the mission of dogs and operators in dark environments with powerful LED/DELs. The microphone allows you to hear the environment in which the dog moves. In intervention mode you can communicate via the microphones with the individual warned in front of the dog. You can evaluate the environment and know what to do faster!

K9 SUPERVISION system has been adapted to meet specialized needs: Assaults, Explosives detections, Tracking, Researches, Interventions, Patrols ...


K9 SUPERVISION facilite la mission des chiens et des opérateurs dans des environnements difficiles et sombres avec de puissantes DEL. Le microphone vous permet d'entendre l'environnement dans lequel le chien évolue. En mode d'intervention, vous pouvez communiquer à distance via les microphones avec l'individu averti devant votre chien. Vous pouvez évaluer l'environnement et savoir quoi faire plus rapidement!

Le système K9 SUPERVISION a été conçu pour répondre à des besoins spécifiques: Assauts, Détections d'explosifs, Recherches de personnes, Interventions, Patrouilles ...


THE CAMERA :

K9 SUPERVISION system can be customized with one or two cameras, front view, rear view, or both.

Camera types : low light black and white, low light color, Full HD and thermal. Custom camera types can be configured upon request.


DIGITAL RADIO :

GS-DMR818 digital radio system is a low profile, long distance, professional digital 2W DMR module with enhanced voice encryption.

GS-DMR818 offers 16 channels, 8 DMR modes and 8 analog modes.

- UHF frequency : 400-470 MHz

- 2W mode NLOS range : up to 1km

- Independent frequency for Tx and Rx Bandwidth : 12.5 /25 KHz

- Max power output : 2W / Low power output : 0,5W

-Internat speaker with automatic switch to K9 speakers

- High sensitivity : -124 dBm

- Internat Lithium rechargeable battery with 8-12 hours run time (depending on power output mode)


VIDEO SYSTEMS :

K9 SUPERVISION system is available with remote video transmission HD COFDM, 3G/4G and or recording capabilities (DVR).


DVR : RECORDING SYSTEMS :

Digital video recording available for the front view camera on a micro SD card. Smartphone DVR control and playback enabled with wifi.

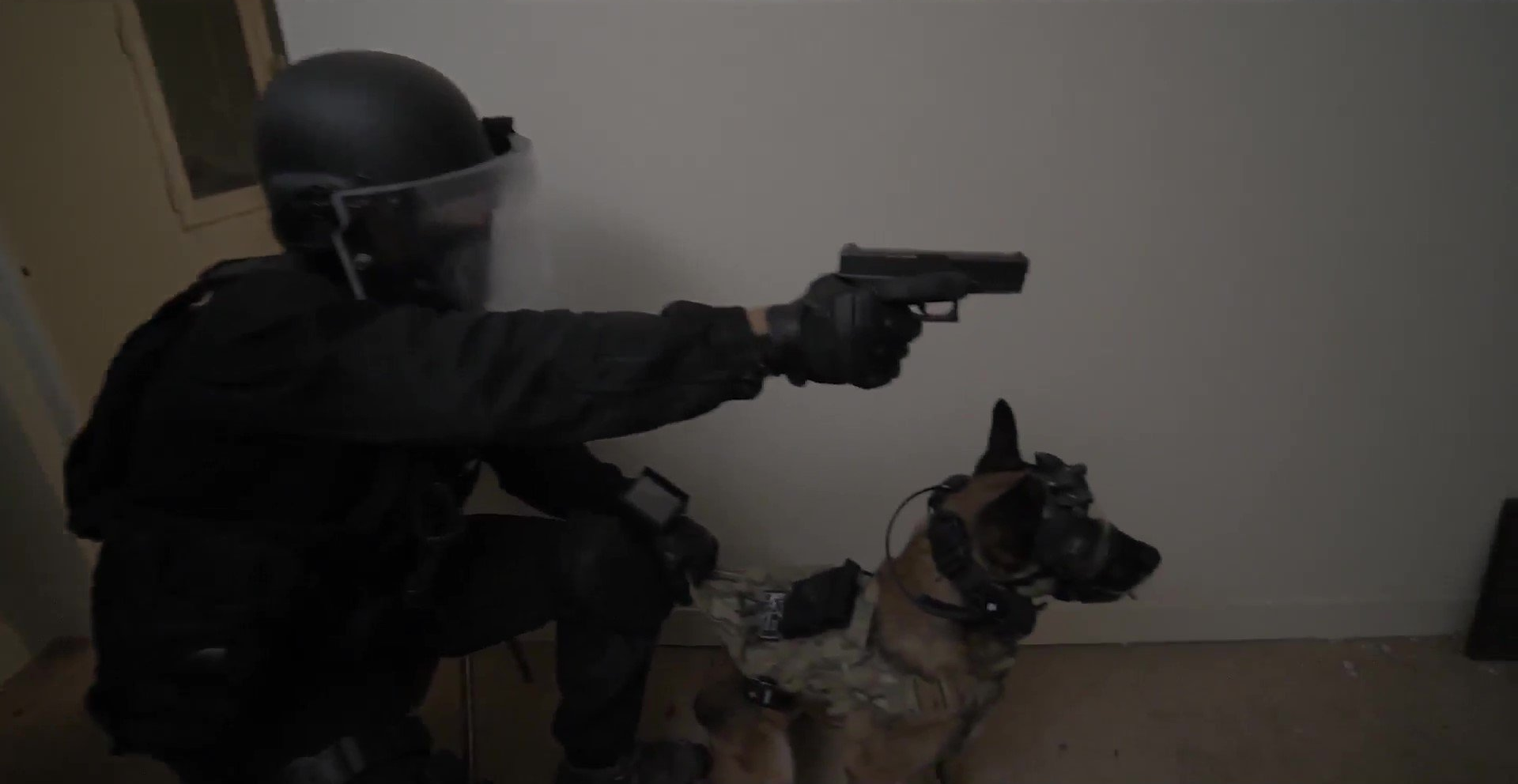

K9 SUPERVISION MASK :

Depending on the version, equiped with 2 cameras (1 front view and 1 back view), 2 powerful LEDs, 2 receivers/transmitters.

- Very stable and provides an excellent protection to the dog.

- Quick set up

- Total weight with dog mask: 1,1023 lb


Constantly evolving with helps of units using the first K9 VS systems deployed, the new K9 SUPERVISION version prefigures the advance of the systems towards new functions and the realization of a multi-role platform allowing the carrying sensors and means of intervention adapted to the various missions of the users.

POLICE 4G & RECORDER VERSION

WIFI and 4G Streaming


- 1 K9 SUPERVISION Rex Specs Goggles with camera and 2 Led, delivered with 1 spare screen.

- 1 Low light dog's vision camera 170° field of view

- 1 4G MODEM including video recorder

- 1 Necklace

- 1 extensible concealment (turtleneck type)


This system allows you to watch the recording on the dog's return and/or watch live via a 4G cellphone (phone not included).

Ideal system for light interventions that do not require a secure network.


Ce système vous permet de regarder l'enregistrement au retour du chien et / ou de regarder en direct via un téléphone portable 4G (téléphone non inclus).

Système idéal pour les interventions légères ne nécessitant pas de réseau sécurisé.


HIGH TECH VERSION

COFDM AUDIO VIDEO LINK + 2 LOW LIGHT CAMERA FRONT & REAR + 1 SET OF DMR RADIO


- 1 K9 SUPERVISION Rex Specs Goggles with camera and headphones integration system, delivered with one spare screen and 2 LED integrated (avec système d'intégration pour caméra et casque audio)

- 1 Low light dog's vision camera, color or B&W (caméra avant faible luminosité, couleur ou noir et blanc)

- 1 Low light rear vision camera, color or B&W (caméra arrière à faible luminosité, couleur ou noir et blanc)

- 1 COFDM transmission video system with local recording and battery

- 1 COFDM receiver carrying bag and tablet holder

- 2 chargers

- 1 set of COFDM antennas

- 1 digital audio transmission system including :

- 1 transmitter with integrated battery (1 émetteur avec batterie intégrée)

- 1 charger

- 1 lightweight communication headset (casque de communication léger)

- 1 receiver with integrated battery, 1 extension Y, 2 headphone panels and connectors, channel settings and audio volume settings (1 récepteur avec batterie intégrée, 1 extension Y, 2 panneaux et connecteurs de casque, réglages de canal et réglages du volume audio)

- 2 chargers or 1 double charger for Receivers

- 1 plastic transport case

- 3 UHF antennas

- 1 Necklace with 2 waterproof pockets to hold 1 digital radio receivers and 1 COFDM video transmitter

- 1 extensible concealment (turtleneck type) to cover all the equipment

- 1 training kit

- 3 transports case for the whole kit


This version allows you to record and hear what the dog hears and see what he sees real time (no 4G network needed). You can to talk to the dog (or anybody in front of him) via the microphones on the headphones. You can watch the safety recording at the dog's return.

Cette version vous permet d’enregistrer et d’entendre ce que le chien entend et de voir ce qu’il voit en temps réel (aucun réseau 4G requis). Vous pouvez parler au chien (ou à n'importe qui devant lui) via les microphones des écouteurs. Vous pouvez également regarder la sauvegarde vidéo au retour du chien.
